Description
This Pure Sine Wave Inverter offer a clean 240V power supplier without a grid connection. The inverter takes power from a 12V battery and delivers it so that it's safe to power sensitive electrical equipment. Ideal for automotive, camping and touring applications. Can also be used to run 240V appliances on your boat.
1800W True Sine Wave Inverter
These professional series inverters are suited to industrial and recreational users who need a stable 240V power supply whilst on the move or living off grid. Packaged with features these units use advanced technology to efficiently convert your 12V DC battery power into a clean AC power supply.
-

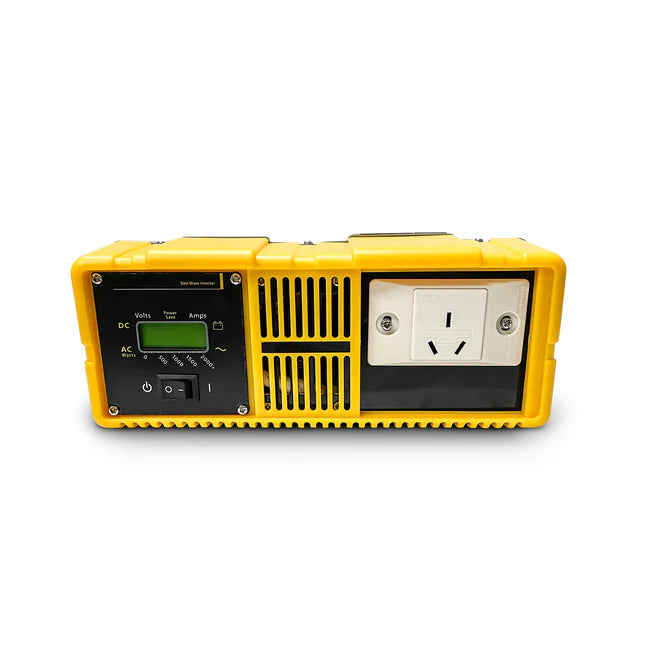

Clear LCD display
-
True sine wave AC output (crystal controlled)
-
Power save mode draws only 1.5 watts under no load
-
1800W output with 2900W surge capacity
These inverters are extremely well built with the latest inverter technology. They are low weight and compact thanks to the high frequency switching technology they incorporate.
With less than 3% total harmonic distortion, this inverter delivers true sine wave output that is identical to the AC power supplied by your utility. This clean output makes this inverter ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, laptops and more.
Remote Mount LCD option
The LCD screen can be easily removed and remote mounted if your installation requires. This feature is handy for caravans, boats and RV's where the mounting location makes viewing of the LCD difficult.
Power to Perform
This 1800W inverter provides ample power for most applications. A lot of equipment has a surge or in-rush power demand when it's turned on. This inverter is designed to handle this and can generate peak power of 2900W for short durations.
This inverter will let you boil water in a kettle, power a microwave, TV and even a coffee machine while you tour in your vehicle. A great addition to make your travels more comfortable. Incorporate solar panels and more batteries to live off grid.
| Specifications |
SSININVT18 |
| Output Power |
1800W |
Surge Rating
|
2900W
|
|
Output Voltage
(at no load)
|
230V AC RMS +-3%
|
|
Output Voltage
(over full load and full battery voltage range)
|
230V AC RMS -10%+4% |
| Output Frequency |
50+/-0.05(crystal controlled) |
| Output waveform |
True sine wave??3%THD? |
Peak Efficiency (12v/24v)
|
89% / 90% |
| No load power draw (search mode) |
<1.5W
|
|
No load power draw(idle mode)
|
<22W |
| Input voltage range(12v/24v) |
10-16Vdc / 20-32Vdc
|
Operating temperature range
|
0 - 60°C |
| Ac output Receptacles |
1
|
LCD display panel
|
Removable; can be mounted remotely with remote mount interface kit |
LCD Display Information
|
Displays DC volts, amps and output power |
Recommended DC fuse
|
12V: 225A or 300A |
| Dimensions |
115 x 280 x 390mm |
| Weight |
7.5 kg
|
| Safety Standards |
EN/IEC 62109 |
| Warranty |
1 yr |
