Description
These heavy duty PTO driven generators, by Paddock Machinery, are ideal for the farmer wanting to operate power tools, welders and electric pumps in remote paddocks. They're fully featured with both single and 3-phase output options making them extremely versatile. Mounted on a heavy steel frame and coupled to a robust speed multiplier gearbox these units offer extremely good value for money without sacrificing quality.

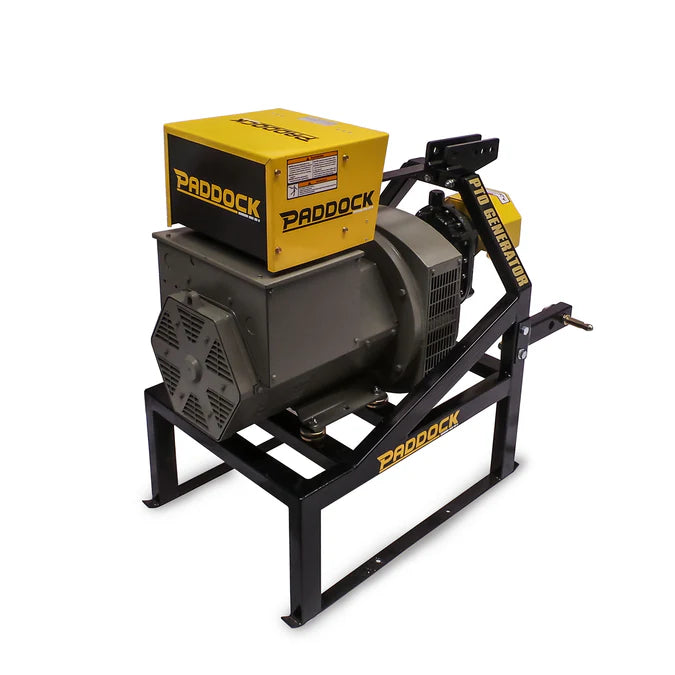

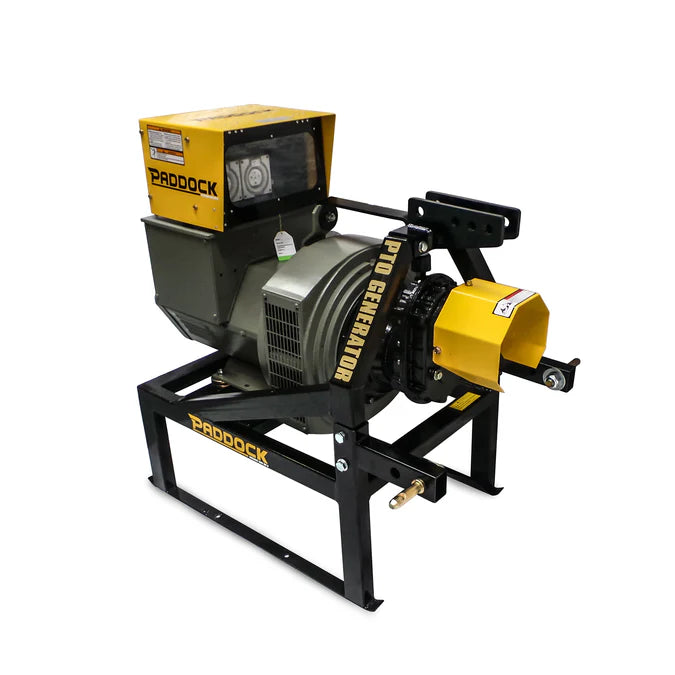

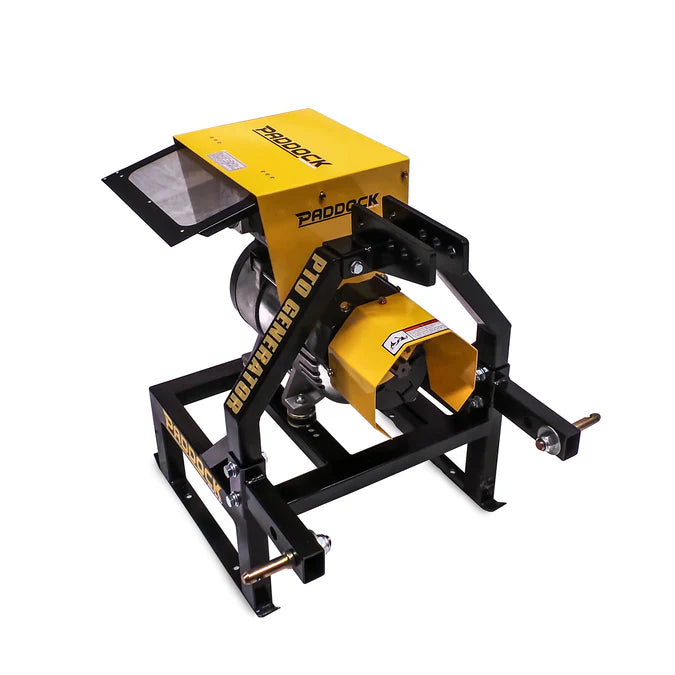

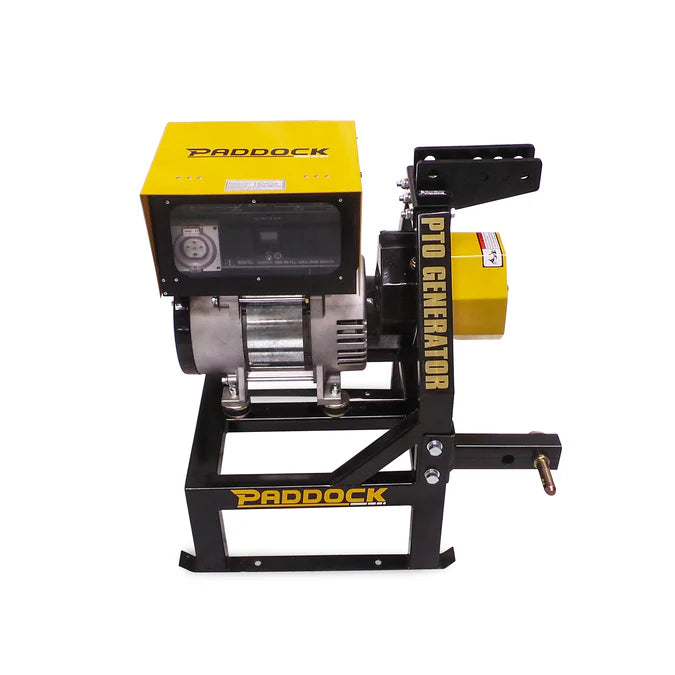

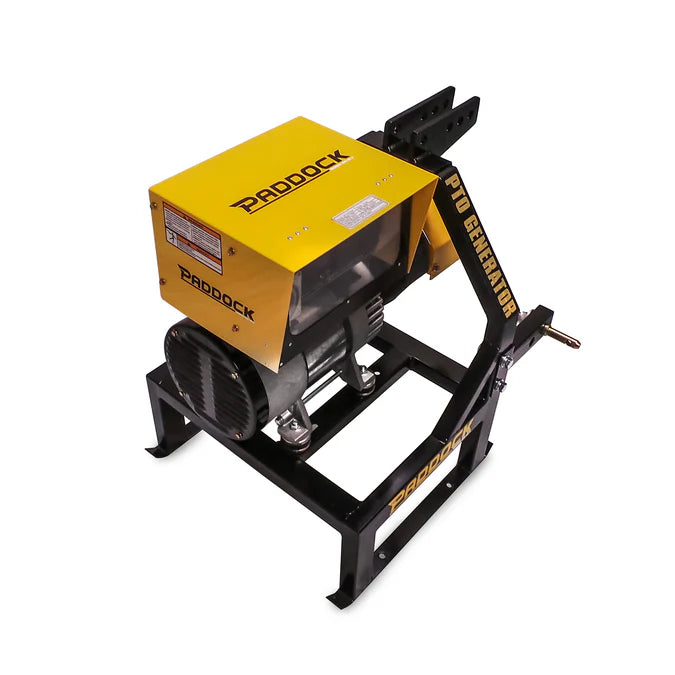

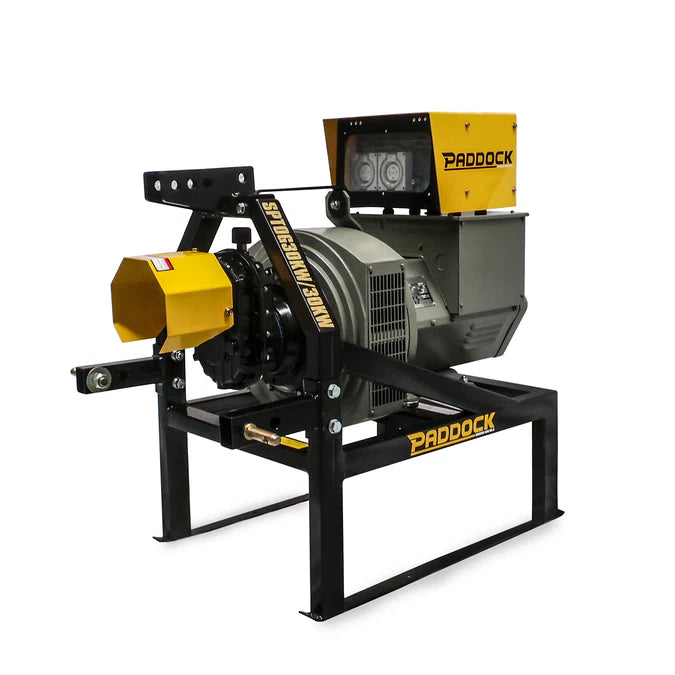

Paddock PTO Tractor Generator
-
Attaches to 3 point linkage setup
-

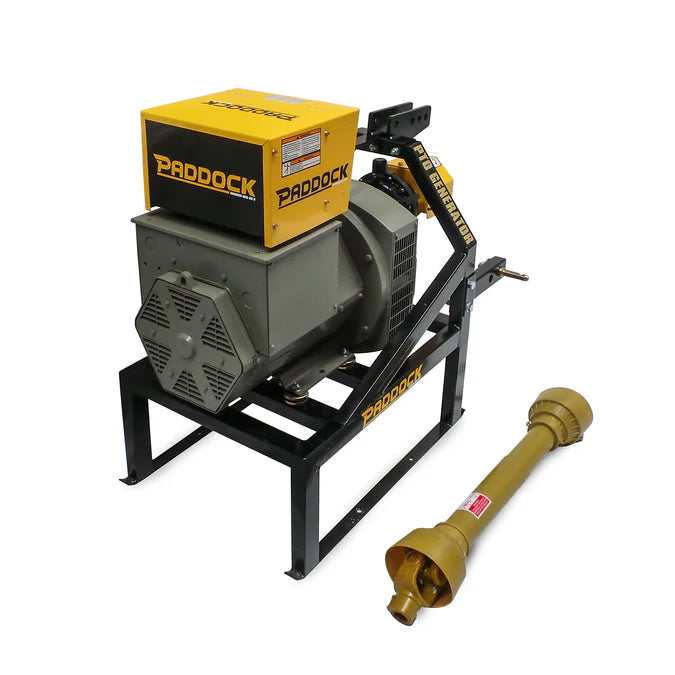

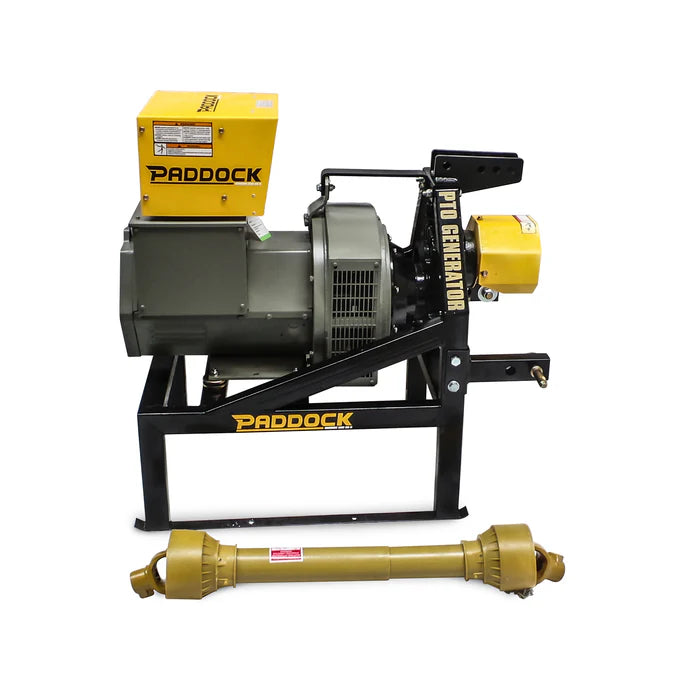

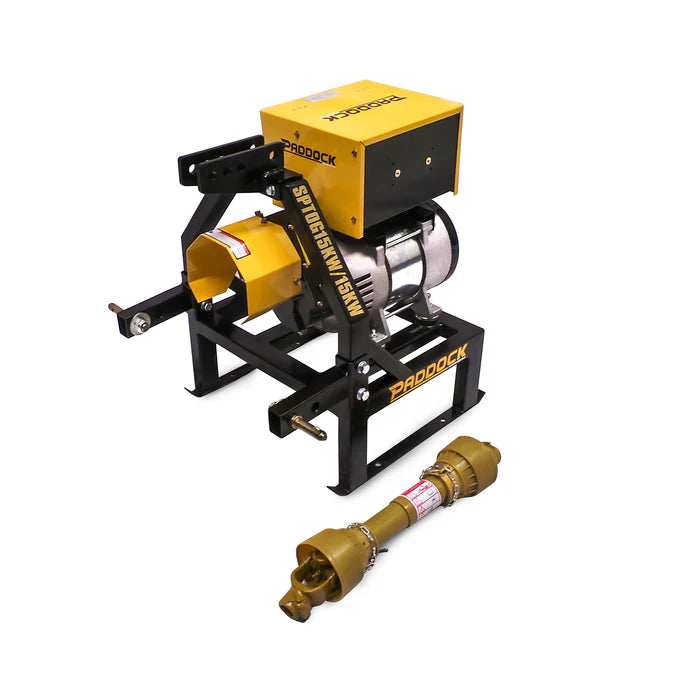

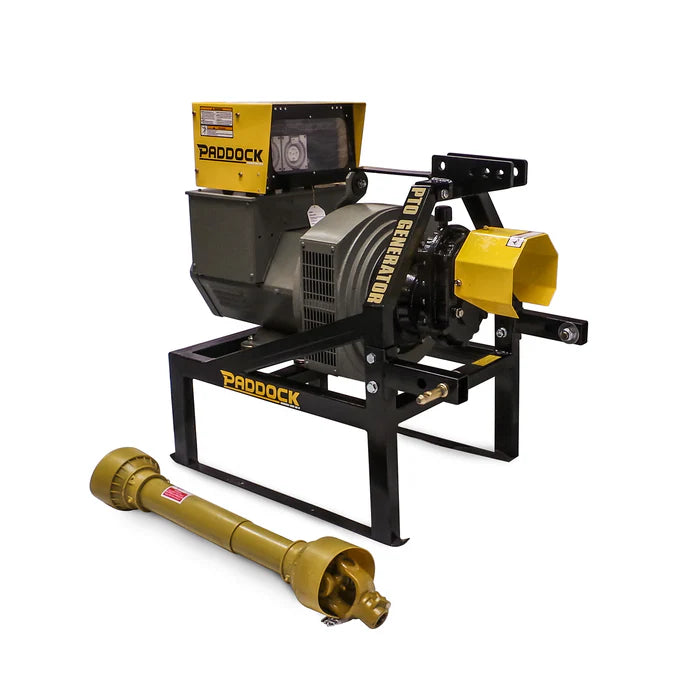

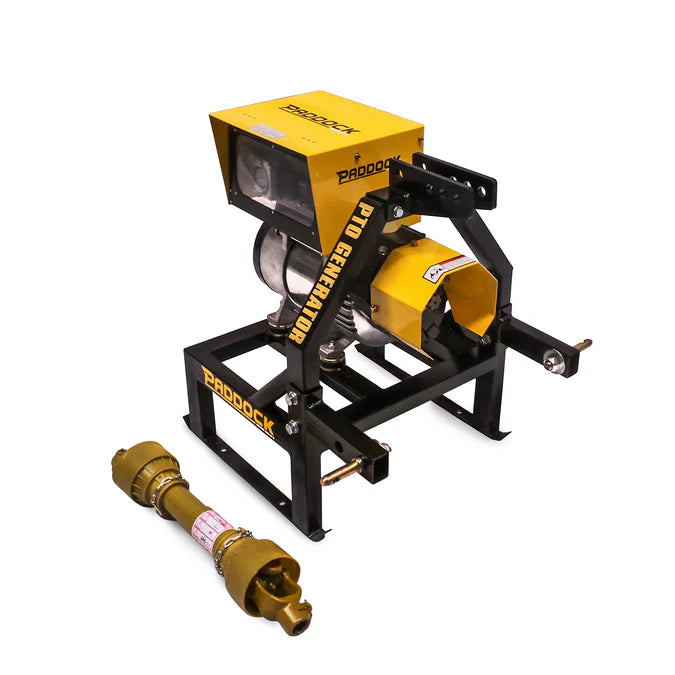

Includes PTO shaft and pins
-
Heavy duty speed multiplier gearboxes
-
Automatic Voltage Regulator (AVR) integrated
-
Fast to relocate to where you need it
-
Utilise the reliability of your existing tractors diesel engine
-
Ideal as an emergency backup generator as there's no associated diesel engine to maintain when not in use
PTO Generator Applications
These generators are perfect for small or large farms and quickly and easily attaches to your tractor making transport a breeze. The heavy duty frame allows for fast trouble free deployment. The perfect addition to anyone needing to weld or drill fences down the back paddock. Utilise the power of your tractors PTO and generate clean power from your diesel engine. Save on petrol generator costs by letting your reliable diesel tractor make the power. Great for remote lighting setups or running temporary pumping operations. Even a backup generator for the farm house. The larger models can be used to power commercial business applications during power outages and emergency situations.
Generator Features

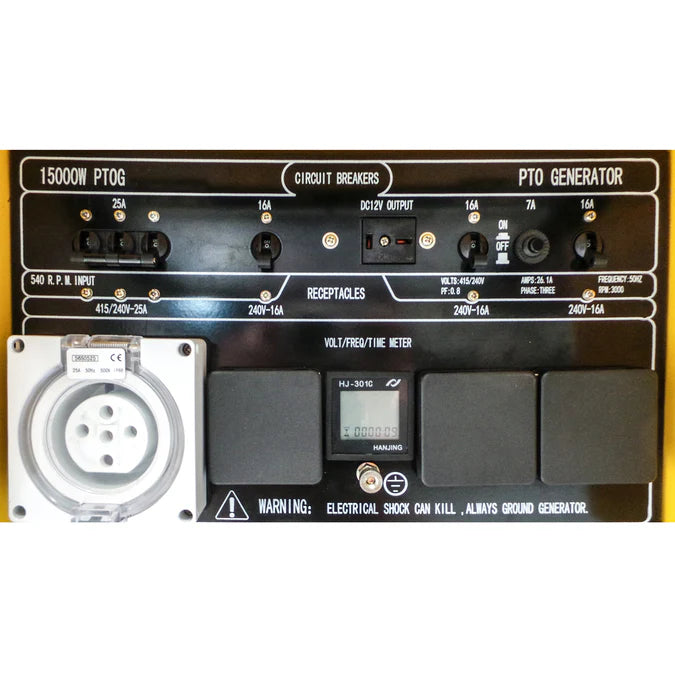

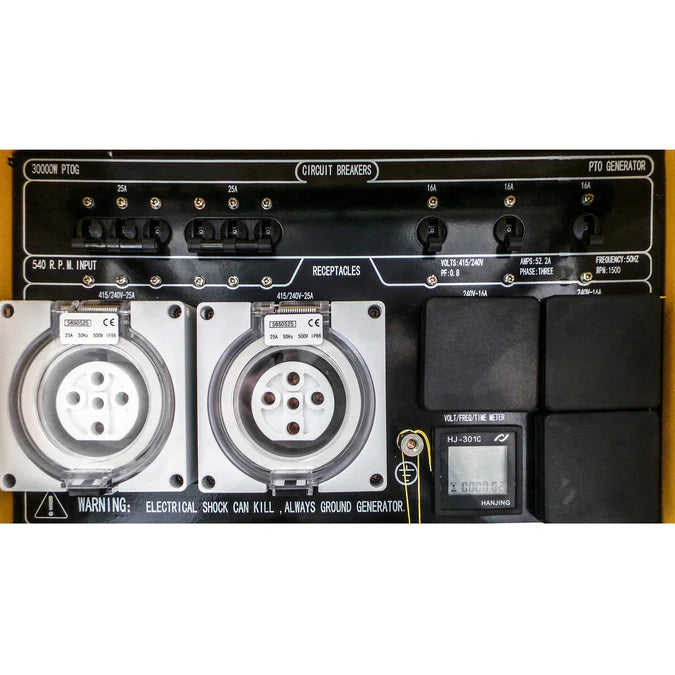

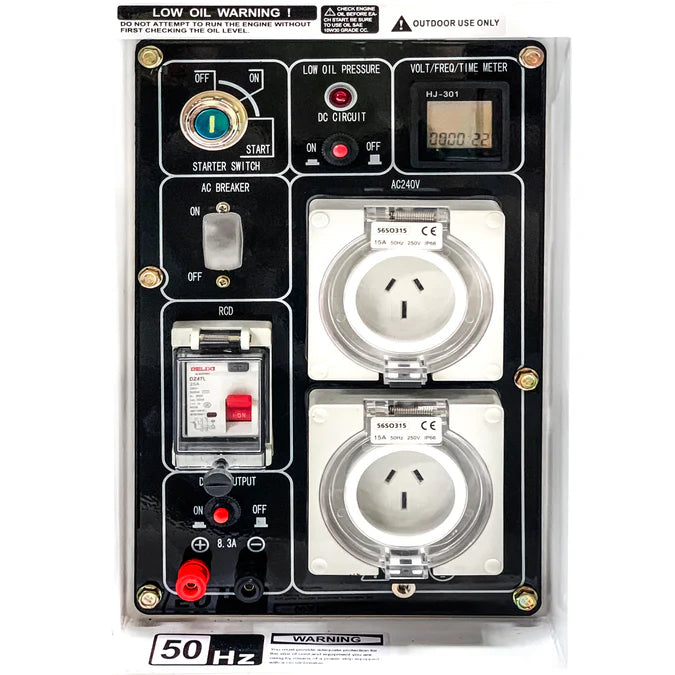

These generators are packed with usable and practical features making them simple, modern and reliable. The generators come with both singe phase and 3-phase power outlets making them very accommodating to a range of applications. Included is a digital voltage and frequency meter so you can monitor the units performance. They also include re-settable circuit breakers in case you do overload an outlet. Each generator is supplied with the PTO input shaft so no need to buy extra components.
Note, these units run a 3-phase generator and are primarily designed for 3-phase loads. Each of the phases are also wired to single phase (1-phase) outlets to give this as a supply option. The single phase outlets consist of 15A sockets protected by 16A breakers. It is not possible to get the full 15kw supply from a single 1-phase outlet. Take care during generator selection if you're planning to run large single phase welders, as if they pull in excess of 16A during the initial arc, the 16A breaker may trip. In general, modern welders with soft starts tend to be suitable but always check your units data plate if unsure.
Generator Construction
These are heavy duty generators designed for Australian conditions. Weighing in at over 150kg, these generators are over-designed and heavy duty. The units include a cast steel cased gearboxes with straight cut gears designed to take the high horsepower inputs of modern tractors. Machined hardened steel shafts and quality bearings ensure a long, low maintenance operating life.

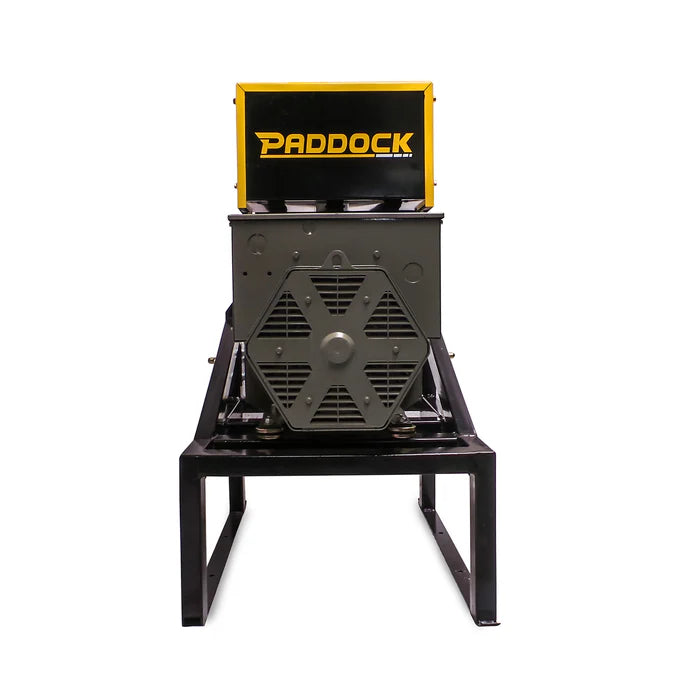

The generator itself incorporates high grade copper windings and fully enclosed electrics ensuring safe, trouble free operation. The brush-less generator design (30 kW+ models) means fewer parts to ever need replacing.

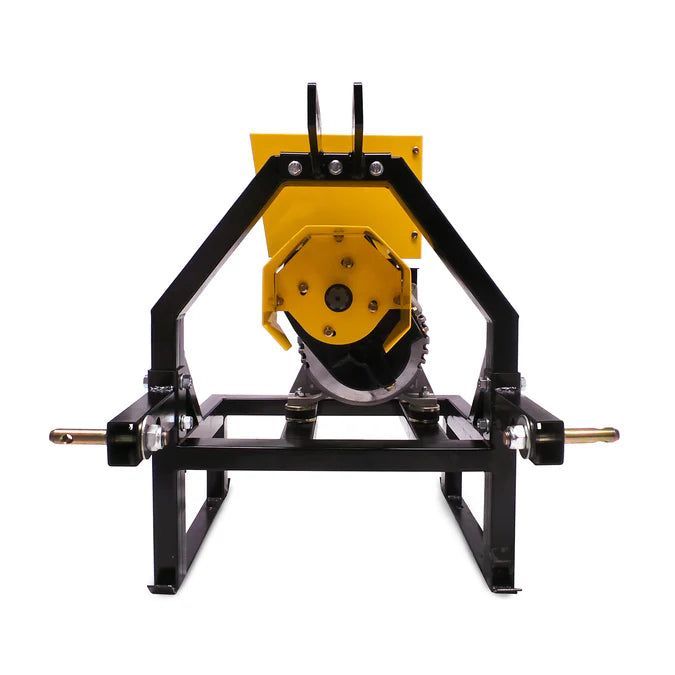

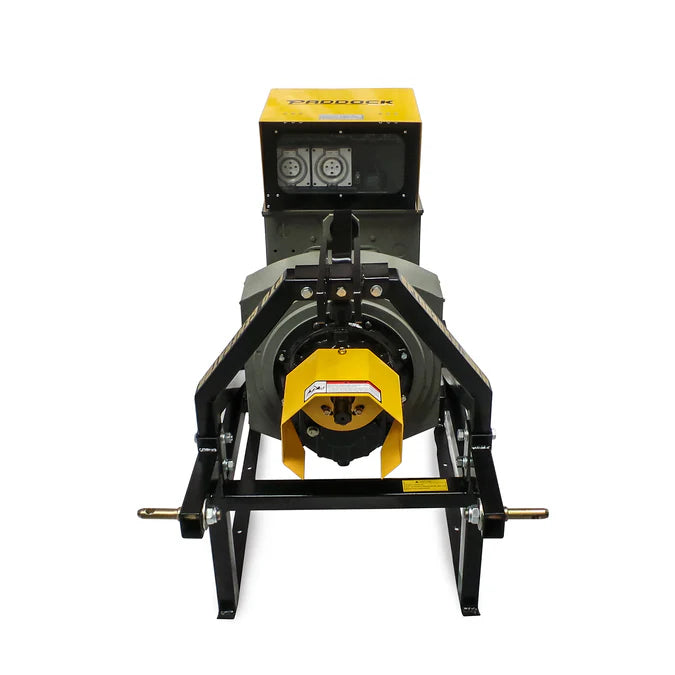

Generator Linkage and Compatibility
Check table below. Standard three point linkage (3PL) for Category 1 (Cat I) tractors with a PTO speed of 540 RPM. Larger models require 1000 RPM input speeds and with with Cat 2/3 tractors.
PTO Generator Specifications
| Generator Model |
SPTOG15KW |
SPTOG30KW |
SPTOG50KW |
SPTOG75KW |
|
Rated Power
(Continuous)
|
15 kW |
30 kW |
50 kW |
75 kW |
| Tractor Power Range |
25 hp+ |
50 hp+ |
85 hp+ |
125 hp+ |
| Power Output |
AC Sine Wave
1 x 415V (5 pin) 3-phase outlet (25 amp breaker)
3 x Single Phase 240V AC (16amp breakers)
1 x 12V DC outlet (7amp breaker)
|
AC Sine Wave
2 x 415V (25amp breakers)
3 x Single Phase 240V AC (16amp breakers)
|
AC Sine Wave
1 x 415V, 50A
1 x 415V, 40A
3 x Single Phase 240V AC (16amp breakers)
|
AC Sine Wave
2 x 415V, 50A
1 x 415V, 32A
3 x Single Phase 240V AC (16amp breakers)
|
| Power Factor (Cos Q) |
1.0/0.8 |
1.0/0.8 |
1.0/0.8 |
1.0/0.8 |
| PTO Speed |
540 RPM |
540 RPM |
1000 RPM |
1000 RPM |
| Generator Speed |
3000 RPM |
1500 RPM |
1500 RPM |
1500 RPM |
| Generator Type |
Brushed |
Brushless |
Brushless |
Brushless |
| Linkage |
Cat I - Three Point Tractor Linkage |
Cat I - Three Point Tractor Linkage |
Cat 2/3 - Three Point Tractor Linkage |
Cat 2/3 - Three Point Tractor Linkage |
| Features |
Digital Voltage and Frequency meter
AVR included
|
Digital Voltage and Frequency meter
AVR included
|
Digital Voltage and Frequency meter
AVR included
|
Digital Voltage and Frequency meter
AVR included
|
| Construction |
Heavy duty, painted steel |
Heavy duty, painted steel |
Heavy duty, painted steel |
Heavy duty, painted steel |
| Gear Box Oil |
SAE90 |
SAE90 |
SAE90 |
SAE90 |
| PTO Input Shaft |
Included 1-3/8" 6 Spline |
Included 1-3/8" 6 Spline |
Included 1-3/8" 6 Spline |
Included 1-3/8" 6 Spline |
| Weight |
~155 kg |
~220 kg |
~230 kg |
~280 kg |
| Dimensions |
660 (w) x 660 (l) x 880 (h) mm |
1030 (w) x 720 (l) x 1100 mm (h) |
1100 (w) x 720 (l) x 1100 mm (h) |
1150 (w) x 770 (l) x 1150 mm (h) |
| Warranty |
12 Months |
12 Months |
12 Months |
12 Months |
Note: Requires addition of gearbox oil prior to operation. To reduce the storage and shipping size the unit will require some minor assembly before use.
SHIPPING INFORMATION:
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of over 150kg. We advise contacting us for a freight quote to your location. A fork lift may be required at the receiver's location for unloading, if unavailable a tail lift truck may need to be booked or depot delivery.
